PERSONAL PROJECT · BUILT IN 2017
SOUND VOLTEXCONTROLLER
A home-built arcade controller for Sound Voltex: a wooden case, a printed plexiglass top, arcade buttons and two analog knobs.
WOODPLEXIGLASSARCADE BUTTONSROTARY ENCODERSLED STRIP
SCROLL
STAGE 01
Teardown

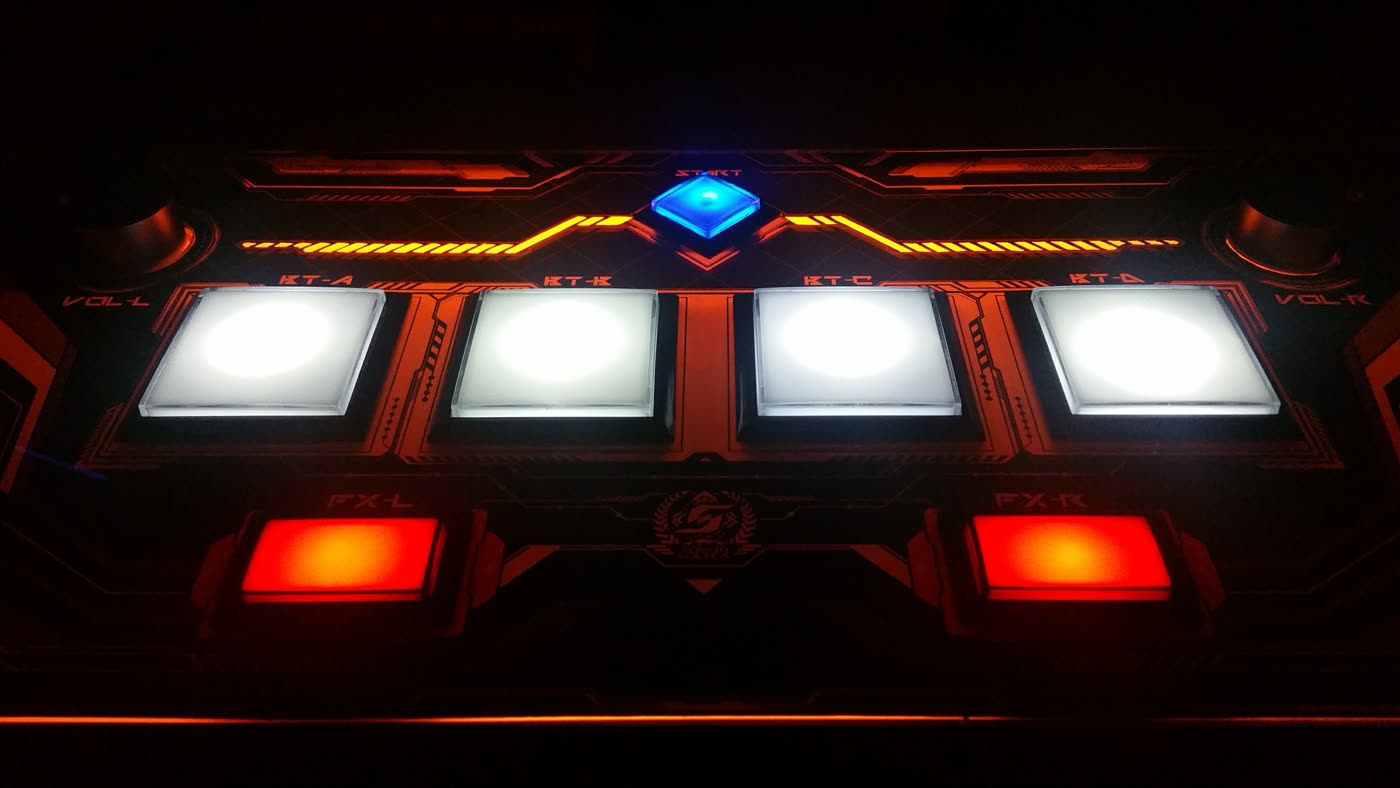

A wooden case under a clear plexiglass top, with the artwork printed on a sheet in between. Four BT buttons, two FX buttons, Start, and two knobs for the lasers.

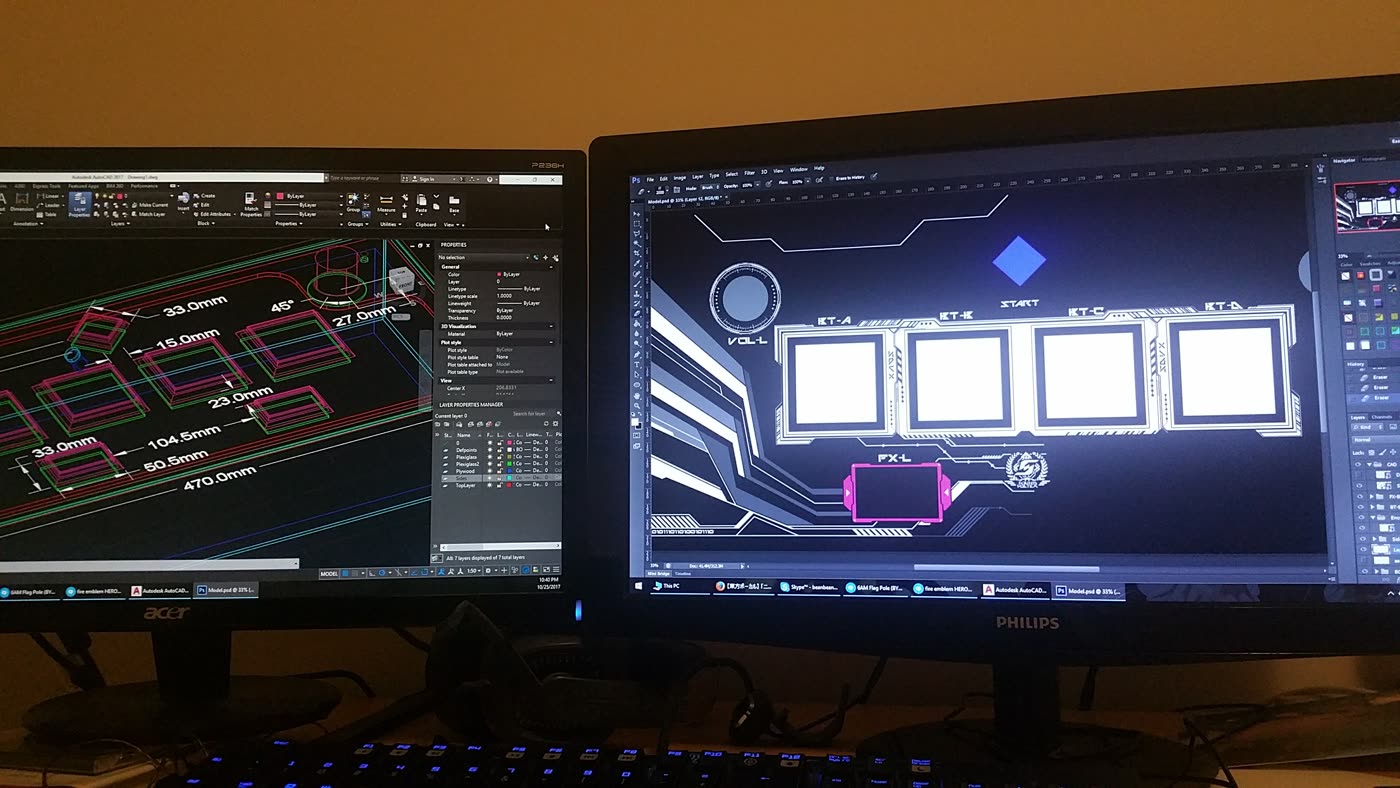

I drew the panel art myself in the style of the arcade cabinet, after laying out the button cut-outs in CAD.

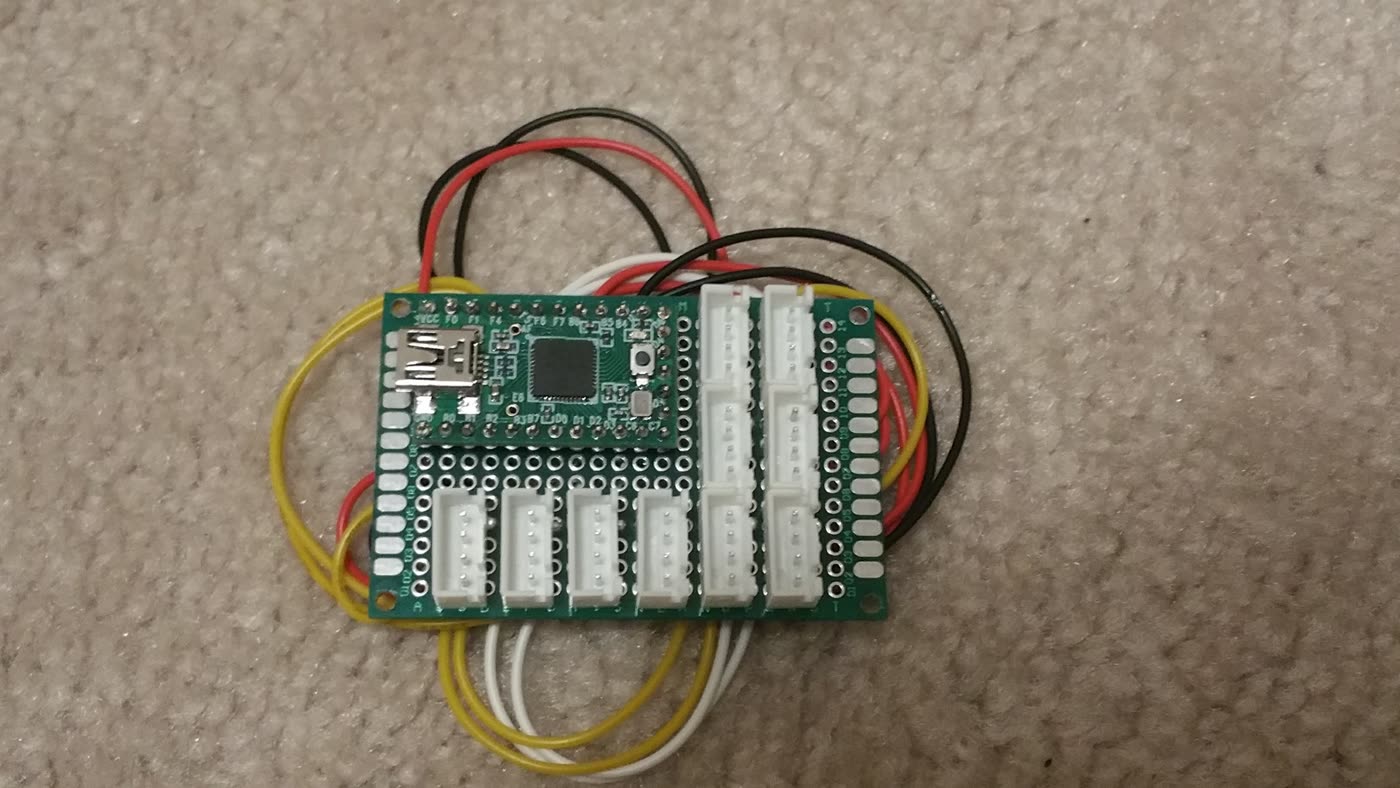

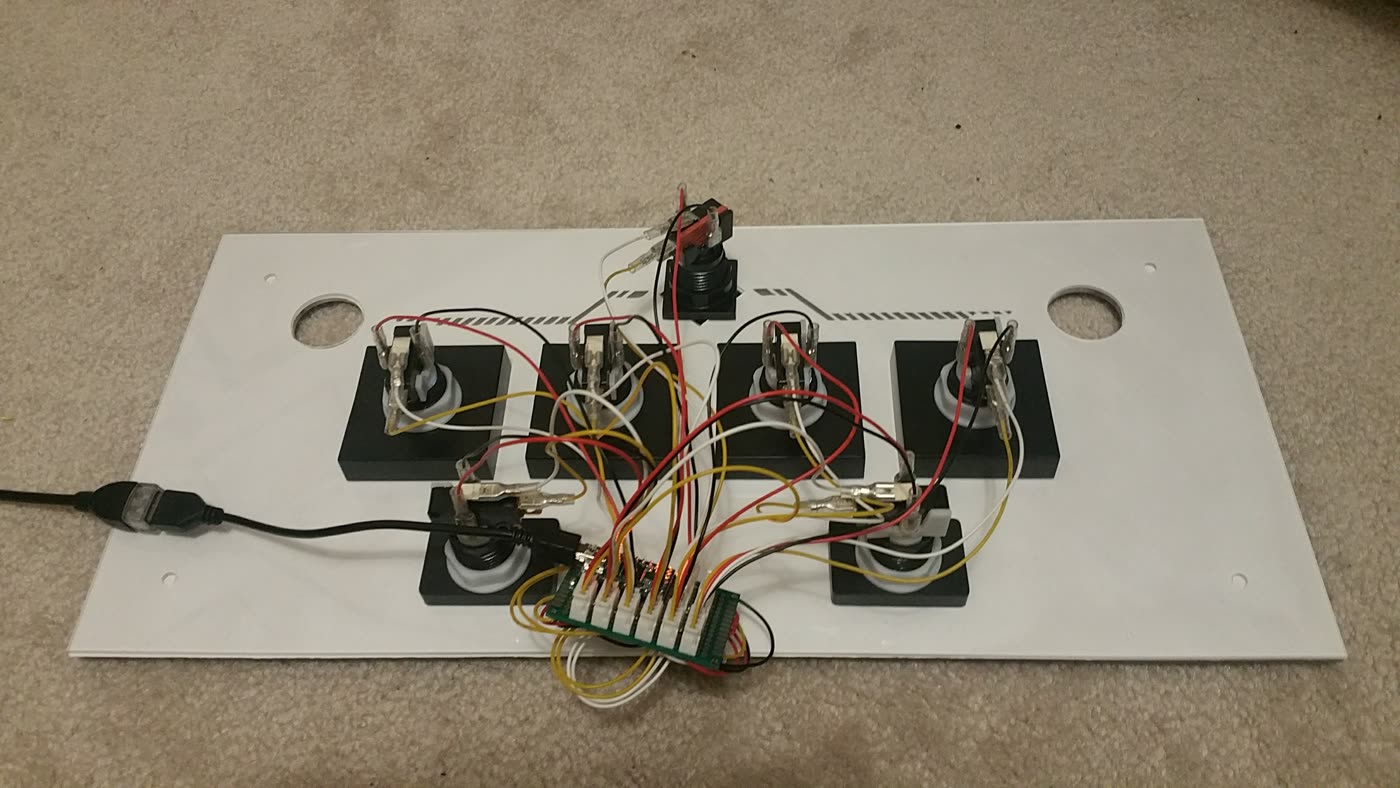

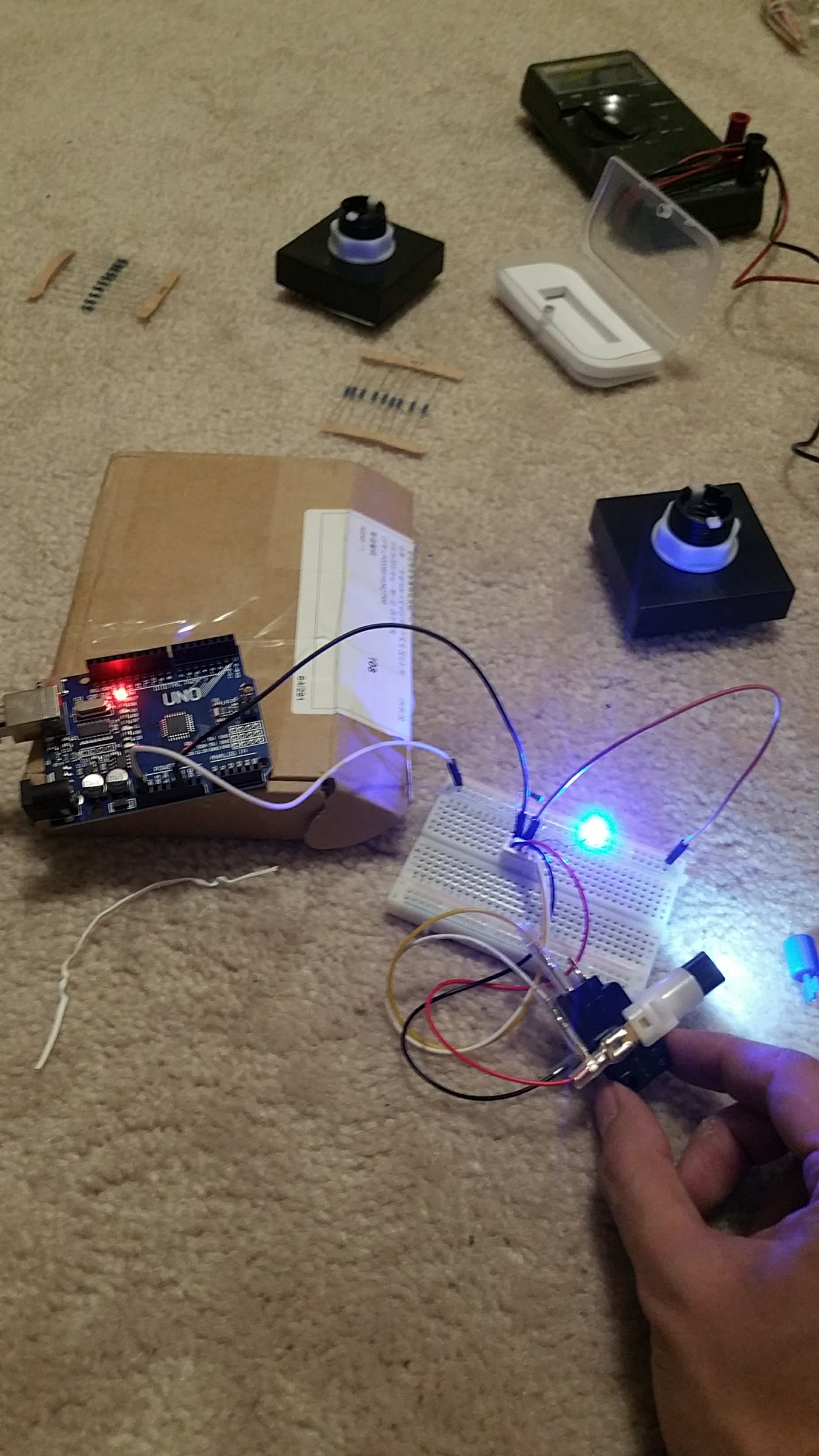

Every button and knob runs to a small USB I/O board. I tested each switch and light on a breadboard first. The firmware and panel art are on GitHub.
